Tunnel Cleaner Cleaning High Li-ion Lithium Battery Electric Handy Portable Automatic Light Wireless Tool Car Pressure Pump Washing Washer Wash Machine

We follow the example of international outstanding enterprises, with leading technology and stable commercial car wash equipment, Machine Type 360 touchless car washing machine, Bus Cleaning Machine, and develop ourselves in serving the society. We adhere to the values of quality, integrity and win-win, and practice the road of sustainable development. We abide by credit, respond quickly to the market, and strive to improve the quality of service, so that all users and suppliers want to share the fruits of our growth. Our company is striding forward with a serious attitude to the grand goal of becoming a large-scale manufacturer in the industry. We welcome friends from all professions to visit, guide and negotiate business.

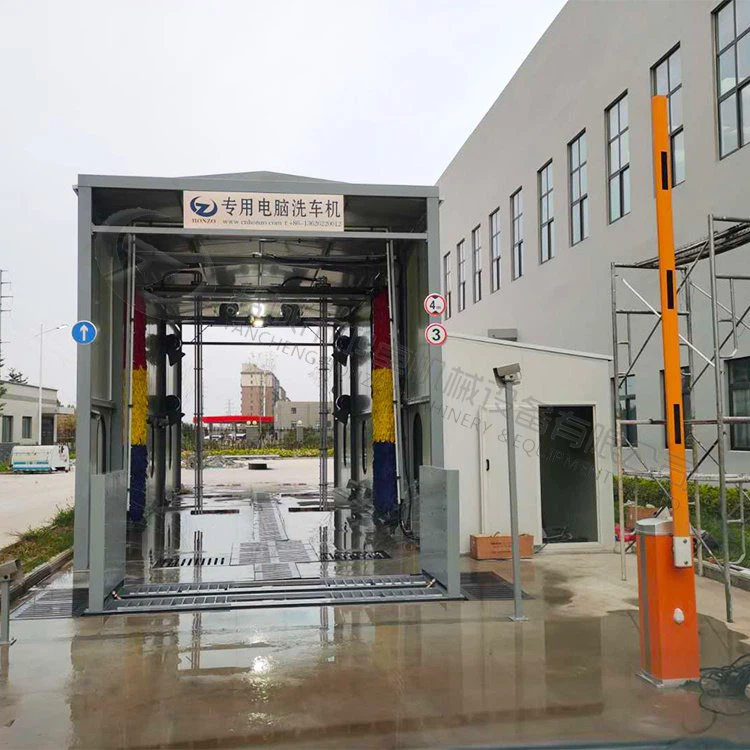

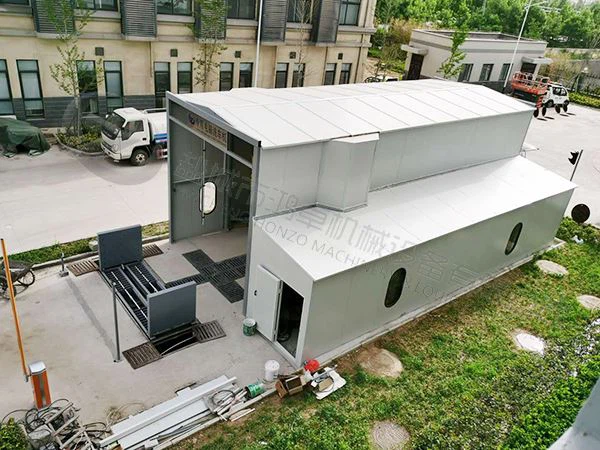

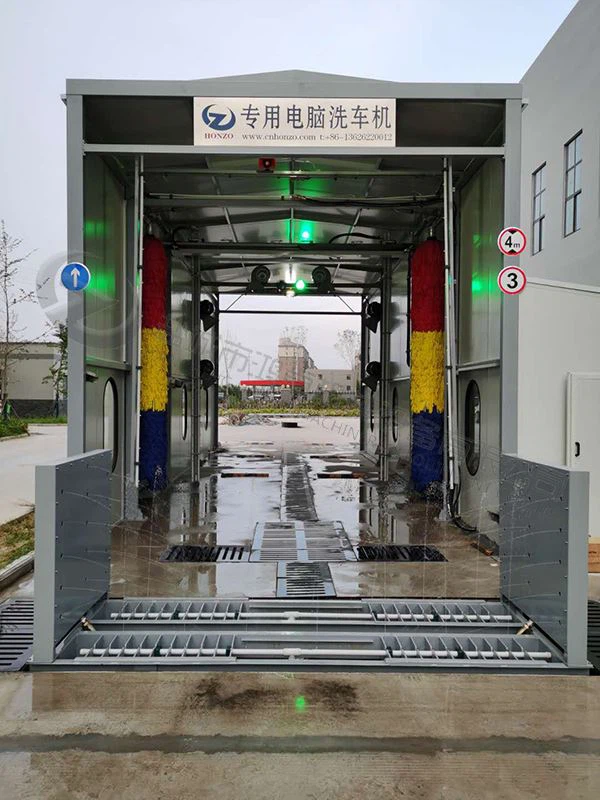

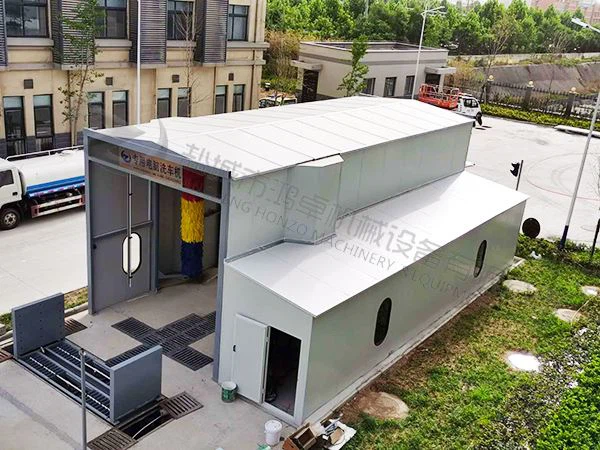

Tank and Garbage truck tunnel washing machine - vehicle washing machine

Main Technical Parameters

1. Dominate machine size: 11500×4000×4700mm (L x W x H)

2. Secondary machine size: 11500×2350×2700mm (L x W x H)

3. Washable vehicle size: 2500×3200mm (W x H)

4. Power supply: 3Phase 5Wires 380V/50HZ，Total capacity 80KW，The highest use of power 80KW.

5. Water supply: Pipe diameter 50mm，Processing capacity 10m3/h，Washing pressure over 3kg.

6. Air supply: Air pressure 8kg.

7. Working environment: Maximum humidity 70%,environment temperature -2℃—45℃.

Main Component Materials

1. Electric barriers: 220V/50HZ, Manual control in and out the vehicle.

2. The wheel cleaning system: Using the vertical multistage centrifugal pump,Flow 260 L/min，Water pressure 12kg.

3. Chassis cleaning system: Using the vertical multistage centrifugal pump, Flow 70L/min, Water pressure 15kg.

4. Lotion spray system: Use automatic matching regulator, The highest adjustable 150 times dilution ratio.

5. Foam spray system: Use automatic matching regulator, Moisture automatically produce bubble.

6. The vehicle head and tail of high pressure water spray system: Using horizontal plunger high pressure pump, Flow 120 L/min, Water pressure 60kg, Start up by 15kw triangle type Siemens motor .

7. The first side of high pressure water spray system: Using horizontal plunger high pressure pump, Flow 120L/min, Water pressure 60kg, Start up by 15kw triangle type Siemens motor.

8. The second side of high pressure water spray system：Share a horizontal plunger high pressure pump with the vehicle head and tail cleaning system, Use the electric value to convert spray.

9. Air drying system: Four sets 7.5kw high powerful fan, Use fixed automatic air drying.

10. Circulating water system: Sewage treatment: 10m3/h.

11. Electrical control operation system

1) Japan ''Mitsubishi'' PLC electrical control system .

2) Taiwan ''Taida'' touch screen operation system.

3) ''Omron'' electric detection, route detecting element.

4) Including administrative management functions: Including check alarm information and On that day and the number of cumulative wash the vehicle.

With perfect service, and sufficient supply, our company has a reputation in the Tunnel Cleaner Cleaning High Li-ion Lithium Battery Electric Handy Portable Automatic Light Wireless Tool Car Pressure Pump Washing Washer Wash Machine industry. Our company has consistently carried out the development policy of 'your needs are our pursuit'. We are committed to the working principle of 'seeking innovation and pragmatism' and constantly research and develop products suitable for market demand in various industries. Our company builds self-confidence on the basis of creating value. We insist on science and technology leading development and service creating value.
