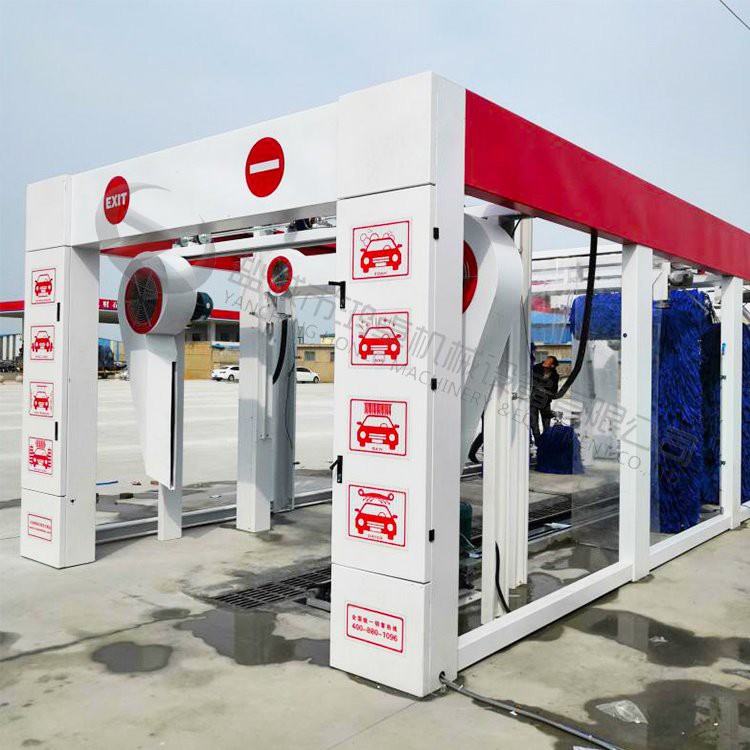

HZ-T1204 Tunnel Car Wash Equipment - tunnel car wash systems

Technical Parameters

Main machine size	15800x4000x3000mm (L x W x H)
Rail length	15000mm
Min Mounting Dimensions ( length*width*height )	15800mm*4000mm*3000mm
Max car wash size ( length*width*height )	2000mm*2000mm
Power Requirement	220V/42Kw, 50Hz/60Hz 3ph
Air switch	200A air switch
Total power	42kw
Water pump motor power	2.2Kw
Air fan motor power	34Kw / full pressure 11000Pa / air volume 23000 cubic meters
Longitudinal motor power	0.37Kw stepless frequency control
Transversal motor power	2.2Kw servo drive system
Washing capacity	40-50cars per hour
air supply	0.8Mpa（buyer supply）
Speed	5-6m/min
Pre-soak consumption	20~50ML/Car ( Depends on chemical proportioning )
Crystal wax consumption	20~40ML/Car
Water consumption	100-120L/car, 30-50 liters per car (need water recycle system)
Electricity consumption	Standard wash 0.8 KW·H/car, Fine wash 1.2kW·H/car VIP wash 1.6kW·H/car

Key Features

1. Main components are high reliability with long service life.

2. Automatic control and multi-function operation, such as washing, drying and wax.

3. Tunnel type structure is safe and good view. (Glass wall is optional)

4. High pressure water system clean the vehicle all direction.

5. Small side brushes for wheel cleaning and chassis cleaner.

6. Foam & super soft brushes, impossible to scratch lacquer, each set could be used for about 100,000 car-times.

7. Dried by strong fans, to make the car dry rapidly.

8. Water recycling system optional to protect environment and save water.

System Components:

The main frame, walking system, small side brush, horizontal brush, large side brush, top hair dryer, side hair dryer, spray system, electric control system, control the working table and other components.

1. Rack (1 set)

2. Ground brush(2 sets)

3. Small side brush (4 sets)

4. Top brush (1 set)

5. Big side brush (4 sets)

6. Drying system (8 sets)

7. The polish brush system(3 sets)

8. Walking track

9. Spray water system

10. Pneumatic system

Pneumatic system is an important part of automatic car washing.

11. Control system

The core part of the whole machine control system is PLC programmable logic controller. Washing machine cylinder of the pneumatic control system, injection system, the liquid flow direction control the solenoid valve, the photoelectric sensor and proximity switch detection, by the program to achieve horizontal brush, a big side brush, side brush, blowing, injection and track of the traction motor control. Just click "start".

12. Water recycling system (optional)
