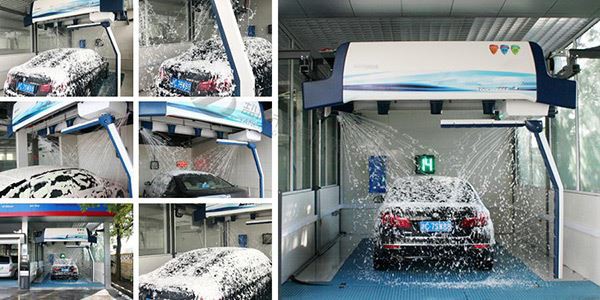

HZ-H9B(magic) Automatic Car Wash System - touch-less car washing machine

The newest HONZO automatic car wash raises the standard for touch-less car wash equipment. With Revenue Enhancement and Total Cost of Ownership improvements being the main focus, this vehicle wash system delivers the industry's best Return on Investment. Smart 360™ Technology enables the car wash system to be responsive to the dynamic conditions in the wash bay and allows it to ''think for itself'' , increasing up-time and optimizing the wash process.

Substantially faster wash speeds lead to increases in vehicle throughput and shorter lines that will make your customers happy. Simplified machine design and lower energy and utility usages reduce operating costs leading to a more profitable car wash operation.

Key Features:

1. One key anti-frozen system.

2. Smart 360 technology.

3. Intelligent chemical mixing system.

4. Innovative suspension system non-resistance rails.

5. Unique embedded fast drying system.

6. Digital voice security alarm system.

7. Faulty self-checking system.

Functions:

1. High pressure pre-wash for under chassis and wheels.

2. Smart 360 rotate arm, spray various washing chemicals with high-precision proportioning technology.

3. Smart 360 rotate arm, Flush car body 360 degree with high pressure water.

4. Magic color polish shampoo

5. Soft water with crystal wax coat

6. Unique embedded fast drying system

User-Friendly Design

* LED with voice guidance

* Automatic clean rear-view mirror

* Automatic anti – collision technology

* Faulty record with data report

HZ-H9B(magic) installation 3D drawing

Technical Parameters:

Machine size: 3500mm*1200mm*900mm Water pump size: 1250*800*600 Chemical mixing system size: 800*450*1400 Rail length: 6800㎜～7500㎜ Shipment weight / Volume: 2.6 Ton, 11CBM Mounting Dimensions (ceiling mounting length): 6600㎜～7500㎜ Mounting Dimensions (floor mounting length): ≥7600㎜ Mounting Dimensions (ceiling mounting width): ≥3600㎜ Mounting Dimensions (floor mounting width): ≥3850㎜ Mounting Dimensions (height): ≥3350㎜ Power Requirements: 380V/22Kw, 50Hz/60Hz Air: 80A Total power: 22kw Water pump motor power: 15kw/18.5Kw Fan motor power: 20.5Kw / full pressure 11000Pa / air volume 23000 cubic meters / h Longitudinal motor power: 0.37Kw stepless frequency control

Transversal motor power: 0.75Kw digital drive motor Rotary motor power: 0.75Kw digital drive motor Liquid proportioning system motor power: 0.75kw Central processor: Industrial PLC embedded central processor + dual-core system Drive System: Promise frequency digital drive Detection system: Smart three-dimensional monitoring system Sensing System: Ultrasound+ Absolute value of the digital encoder Speed: 360 wash 28 seconds, energy saving 60% Wash liquid consumption: Depends on liquid proportioning Polish shampoo consumption: 10ml-40ml Crystal wax coating consumption: 18.5L could apply for 800 cars Water consumption: Standard wash 94L/car, Fine wash 150L/car Electricity consumption: Standard wash 0.52 kW·h/car, Fine wash 0.99 kW·h/car

International Quality — HONZO 360 Intelligent Vehicle Detection System

Honzo Service:

1. The service and maintenance of Honzo system should be done by specialist technician, Cut off power supply when machine under service. Factory setting management code is 8888, it has permissions to modify the parameters, view vehicle wash quantities and change the password. Default password is 0 for operating the wash system, it can be changed to others like 12345, then the operator need enter into management center firstly, type in password 12345 then can start the operation.

2. Keep the main control box and touch screen in drying circumstance, it's not allowed to touch these devices with wet hands, keep chemical mixing box with water pump box at drying circumstance as well. Before turn on the power supply, make sure the main control box voltage display stability and consistency.

3. Service and maintain wash system regularly, regularly cleaning machine surface, remove dirt on sensors, remove water in drive control box. Cleaning water tank when it becoming dirty, especially inlet filter of water pipe. It’s strictly prohibited to start rinse when water tank lack of water, use chassis to exhaust air firstly, never exhaust air with ''L'' arm rinse.

4. Exhaust water in pipes and tank during car wash equipment idle time, and when temperature under zero degree, must close inlet valve of chemical mixing system before shutdown the machine, use one key drain function to exhaust liquid in machine pipes, and open the discharge valve, exhaust water to prevent freezing. Don't start machine once freezing, otherwise will break the water pump and motor.

5. Add wash chemicals in-time, it will can not spray out the chemicals if air go inside the hose, prevent impurities fall into washing liquid bucket and water tank, otherwise may cause stuck inside the chemical mixing box.

6. Air compressor need to install oil-water separator, exhaust water in compressor every 15 days, the air supply for wash system can not contain a lot of water and oil, otherwise will cause lack of air during chemical spraying, It is strictly forbidden to directly use heavy alkaline water (PH value> 8) or high salty water.

7. Inspect water pump and pump motor belt every 30 days, tension belt if belt fluctuate too large, ensure parallelism during belt tensioning. Cleaning water pump filter regularly. Replace oil in water pump regularly( every 5000 cars ), or when the oil is dirty . Oil volume more than half but not full, Taiwan Wuli WH-10120 pump use No 30, 40 or 68 engine oil( 2.36L ), German Pinfl pump use 220 Shell gear oil ( 3.3 L )

8. Check synchronous belts every 30 days, immediately tighten it if happened deviation and loose phenomenon, otherwise machine will jump with grinding noise.

9. Check terminals inside Electrical cabinet every 30 days, especially terminals for water pump and air fan power line, and terminals in drive control box ( because it walking every day ), tighten it if any loose. This can ensure a stable performance of electricity system.

10. Inspect frame screws and rail fixing screws every 90 days, Check the walking wheels every half year.
