Car Washing Center Machine

Introducing the Car Washing Center Machine – Your Solution for a Hassle-Free Car Wash!

Looking for a cost-effective, reliable, and efficient solution for your car washing needs? Look no further than the Car Washing Center Machine! As a leading manufacturer of car washing equipment, we have designed and developed this innovative machine to cater to the needs of car wash businesses and car enthusiasts looking for a smart and effective solution for their cleaning needs.

What is the Car Washing Center Machine?

The Car Washing Center Machine is a multifunctional machine designed to provide an all-in-one solution for car washing, tire cleaning, and waxing. This sleek and sturdy machine is ideal for car wash businesses, detailing shops, automotive dealerships, and more.

The machine is not only easy to operate, but also requires minimal maintenance, making it a cost-effective solution for business owners looking to streamline their operations and reduce costs.

What are the Key Features of the Car Washing Center Machine?

The Car Washing Center Machine comes loaded with a host of features to ensure a superior cleaning experience for the end-user. Here are some of the most noteworthy:

1. Integrated Spray Gun and Foaming System

The machine comes equipped with a powerful spray gun and foaming system, perfect for deep cleaning of vehicles. The spray gun can emit a powerful jet of water, while the foaming system can add a layer of foam to the surface of the car, helping to loosen and remove dirt, grime, and other contaminants.

2. Tire Cleaning and Waxing System

The Car Washing Center Machine is the only machine on the market that combines tire cleaning and waxing systems. The tire cleaning system can effectively clean dirt and grime from the tires, while the waxing system adds a protective layer of wax to the surface of the tires, helping to extend their life and improve their appearance.

3. Hot Water System

The Car Washing Center Machine comes with a hot water system, which provides hot water on demand, helping to loosen and remove dirt and grime from the surface of the car. The hot water system also helps to sanitize the surface of the car, ensuring a clean and hygienic finish.

4. Easy to Use

The machine is designed to be easy to use, with intuitive controls and a user-friendly interface. Even novice users can quickly learn how to operate the machine, reducing the need for extensive training and improving the overall efficiency of the operation.

5. Sturdy and Durable

The machine is built to last, with a sturdy and durable construction that can withstand the rigors of daily use. The machine is also low maintenance, with minimal upkeep required to keep it running smoothly.

6. Multiple Payment Methods

The Car Washing Center Machine comes equipped with multiple payment methods, including coin-operated mechanisms, cashless payment systems, and credit card readers. This makes it easy for business owners to accept payments from customers and streamline their operations.

Why Choose the Car Washing Center Machine?

At our company, we believe that the Car Washing Center Machine is the perfect solution for car washing businesses looking to improve their operations and offer a superior service to their customers. Here are some of the key benefits of choosing our machine:

1. Reduced Operational Costs

The Car Washing Center Machine can help reduce operational costs by streamlining the car washing process and reducing the need for manual labor. This can lead to significant cost savings over time.

2. Improved Efficiency

The machine is designed to be efficient and user-friendly, reducing the time and effort required to wash and clean a car. This can help improve the efficiency of your business and allow you to serve more customers in less time.

3. Superior Cleaning Results

The machine is equipped with powerful features and systems that can provide a superior cleaning experience for the end-user. With the Car Washing Center Machine, you can be sure that your customers will be satisfied with the finished result.

4. Easy to Install

The machine is easy to install and can be up and running in no time. This means that you can start generating revenue from your car washing business quickly and easily.

5. Versatile Solution

The Car Washing Center Machine is a versatile solution that can be used for a wide range of car washing applications. From car detailing to automotive dealership services, this machine can do it all.

In Conclusion

If you are looking for a cost-effective, efficient, and reliable solution for your car washing needs, the Car Washing Center Machine is the perfect choice. With its powerful features and innovative design, this machine can revolutionize your car washing operations and help you stand out from the crowd. Contact us today to learn more about this innovative machine and how it can benefit your business!

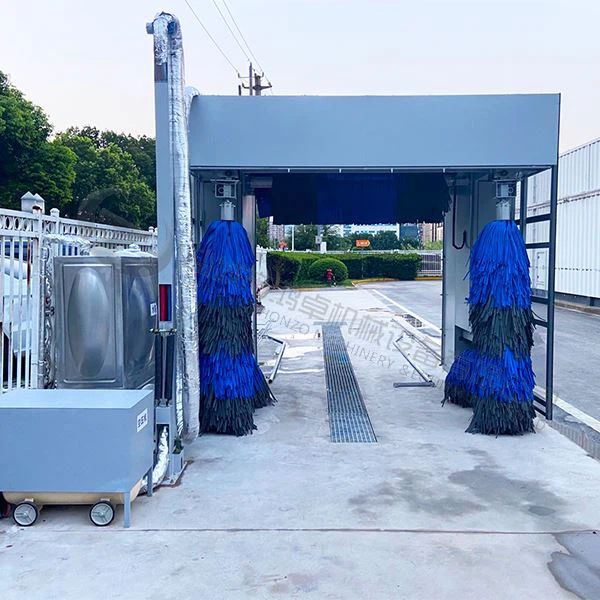

Gantry Car Washing Machine - car washing center machine

Technical Data:

1. Machine size: 2250x3550x3000 mm (L x W x H)

2. Machine weight: 1500kg

3. Washable car size: 5200x1950x2000mm (L x W x H)

4. Rail length: 10000mm

5. Washing time: 4-6min/ car

6. Working air pressure: 0.8Mpa

7. Water consumption: 80-120 liters per car

8. Power supply & consumption: 380V, 50HZ, 3 phases, 6KW

Working Process

Press the "start" button, the spray system, the horizontal brush began to decline, when down to the bottom end, the horizontal brush, side brush began to rotate, car washing machine forward moving along the guide.

When the horizontal brush with the vehicle surface has a certain degree of contact, horizontal brush began to rise, and fake car shaped cleaning is then performed along the surface of the vehicle, when washing machine round brush with a car wheel pair, the washing machine start stop walking, side brush automatic rotation, when the washing machine side brush contact to the front of the car to a certain extent, side brush began moves from side to side, and along the sides of the car wash. When cleaning the vehicle rear surface, horizontal brush began to decline, the side brush began to central closure.

Gantry Car Washing Machine System Components:

The whole machine is composed of frames, top brush, side brushes, spraying system, electric control.

1.Frame(one set)

Frame is the main part of the car washer. It is made of joint steel tubes, with cover of anticorrosive panels. The left and right columns and the top casing are coated and connected with bolts. On the two columns and the top casing are separately installed with the top brush, air duct, wheel brushes, spraying system, air-operated system and electric control system. Under the two columns are separately installed with driving and driven rollers. And the driving roller is connected with speed-down machine through a set of chain wheels.

2. Top Brush(one set)

The top brush is installed on the frame,The bearing on the left end of top brush is connected with guide way, And so is the motor of speed-down machine on the right end. Parts of the top brush are installed on the left and right track. The left end of top brush is connected with counter balance through chain, with the help of pulley. And the right end is respectively connected with counter balance and cylinder though sets of pulleys. On the upper and lower frame of counter balance are separately installed with limited bumper block. Press  ''Wash'' , and the counter balance will touch the proximity switch. The top brush begins to rotate and the car washer travels forward. When the top brush touches the car surface, because of the current change of motor, the magnet valve changes the direction, cylinder lets in air, and the top brush begins to rise. The top brush solves the washing problem of the ceiling, front and back of the washed car. The top brush moves up and down along the track. The moving distance is controlled by cylinder and balanced by counter balance. Its rotation is realized by the motor with speed-down machine on the right side.

3. Big Side Brush

Parts of side brushes are installed on the set track of frame. Side brushes are composed of rotating device, air-operated system, and checking system.

1) Rotating Device

Rotating device is the main part of the side brushes. Motor with speed-down machine is installed on connection board with bolts. The lower end of the speed-down machine is connected with side brushes to drive them to rotate, through flange plate. Connection board is connected with traveling dolly of side brushes through a piece of pin axis. And dolly is installed on track through four nylon traveling wheels (two wheels up and two wheels down) and four guide wheels (two wheels at the front and two wheels at the back) which are installed on track . And this makes dolly glide on the track through rollers to help side brushes open and close.

2) Air-operated System

Air-operated system is composed of two cylinders on the left and right. The end of cylinder is connected with connection board fixed in routing duct , through pin axis. The piston rod adaptor of cylinder is connected with tie-in which jointed on dolly . This drives the dolly to travel left and right through intake and extract of cylinder to realize the open and close of side brushes.

3) Checking System

Checking system is available for the supervising and controlling of the opening and wavering range of side brushes. When the car washer begins to travel, side brushes start to rotate. And when touching the back surface of the car, side brushes begin to incline. Current sensor in electric tanks gets the signal to change the direction of magnetic valve. Cylinder begins to work and side brushes open to help side brushes realize the peripheral wash of the car and the touching degree of side brushes and car surface through current sensor. If side brushes deflect too much from the vertical position, side brushes don't work. Sensor 1 helps to give the signal to stop the car washer. Rubber mat on frame has function of shock absorption, buffer, and rectifying error to help side brushes to promptly return to the working condition. After side brushes return to the normal situation, the car washer continues to travel automatically to finish the peripheral wash of the car.

4. Spraying Water System

Spraying system is for wash and wax. It can work according to the condition of cars, as the request of clients. The washing process is finished by spraying system.

Water pipe made of cents of galvanized steel tubes, is fixed on the columns of frame. User can prepare water tank or water pool according to his own requirements. Water in water tank is drawn out by water pump. Wax tank and shampoo tank can be made into one, with the middle separated. Wax pump and shampoo pump are fixed on frame of the car washer.

When the car washer works, water pump extracts fresh water from the water tank or pool. Pimp lets in fresh water and wash the ceiling and sides of the car through nozzle

5. Electric Control System

The core part of the whole machine control system is PLC programmable logic controller. Washing machine cylinder of the pneumatic control system, injection system, the liquid flow direction control the solenoid valve, the photoelectric sensor and proximity switch detection, by the program to achieve traction movement control of horizontal brush, a big side brush, side brush, a wind pipe, a spray and washing machine. Just click the "start" button, a one-time completion of automatic cleaning, air dry (such as with air drying system) the whole process.
